Super Video Fidelity

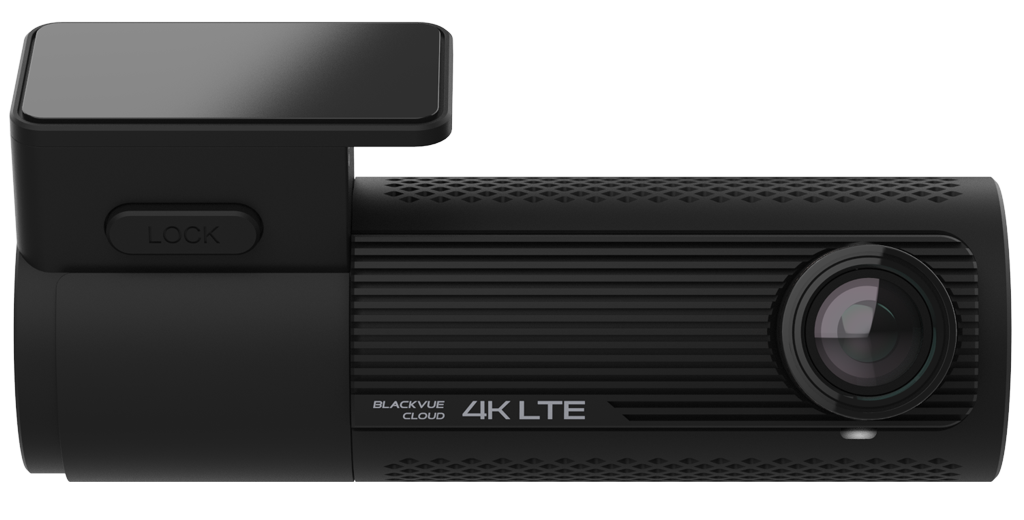

DR970X-2CH LTE PLUS
The new BlackVue DR970X-2CH LTE PLUS is more than just a dash cam, it’s an always-on, 4G cloud-connected video surveillance system for your car.
It features built-in 4G LTE connectivity, meaning you are always connected, enabling unique features like Remote Live View, letting you monitor your vehicle from anywhere in real time – it’s like always having a pair of eyes on your car. Rest easy knowing that your BlackVue is always capturing and saving video evidence – front and rear, and the built-in SIM card slot means your dash cam is always connected to BlackVue’s industry-leading Cloud services.
With 4K Ultra High Definition performance, the DR970X-2CH LTE PLUS provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 146° viewing angle. A SONY STARVIS 2 image sensor ensures the best possible image quality under any lighting conditions. Also included is GPS logging, Wi-Fi, Cloud-connectivity and impact and motion detection. All this in a stealthy compact design. The DR970X-2CH LTE PLUS is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connect you with your vehicle, providing additional functionality including Live View, Remote Video Playback, Video Backup, Realtime Tracking and Emergency Notification Alerts.
SETTING STANDARDS
4K ULTRA HD
Stunning 4K Ultra HD resolution from 8-megapixel CMOS sensor, Full HD 1080p rear camera with SONY STARVIS and smooth 30 fps video.
cloud
connected
Compatible with BlackVue Cloud, connect with your vehicle remotely via the BlackVue app and view LIVE video, download clips etc.
4G
LTE
Built-in 4G SIM card reader for always-on, 24/7 connection to BlackVue Cloud and it’s unique LIVE features.
2GB OF
MONTHLY DATA
The DR970X-2CH LTE PLUS includes a SMARTY SIM, providing a monthly data allowance of 2GB for only £5.00 per month.
2
Channel
With twin Full HD cameras and a Sony STARVIS image sensor, the DR970X-2CH LTE PLUS offers exceptional day and night performance.
PARKING
MODE
The DR970X-2CH LTE PLUS protects your vehicle even when you’re not around, thanks to BlackVue’s unique Intelligent Parking Mode.
GPS & DUAL
BAND WiFi
Built-in GPS adds location and speed data overlay to recordings while Wi-Fi provides wireless connection to smartphones.
APP
CONTROL
The BlackVue app for iOS & Android provides access the your dash cam’s settings, video files and LIVE BlackVue Cloud features.
4K VIDEO
BlackVue is a global leader and innovator in the field of in-car video technology and has always put image quality at the forefront of their product development.
The DR970X-2CH LTE PLUS is BlackVue’s range-topping dual camera model, engineered for the user who demands the finest video quality day and night. Featuring a 4K UHD front camera with 8-megapixel CMOS sensor and Full HD 1080p rear camera with SONY STARVIS CMOS sensor for superb clarity.
The 4K Ultra High Definition resolution contains exactly four times as many pixels as Full HD, 3840 pixels × 2160 lines to be exact, equivalent to 8.3 million pixels.
This can mean the difference between a pixelated blur and a readable licence plate, especially at speed or in low light conditions. To take even greater advantage of the extra resolution, the DR970X-2CH LTE PLUS includes an ultra-wide 162° lens on its front camera for incredible clarity and detail from edge-to-edge. The DR970X-2CH LTE PLUS performs exceptionally well at night and in dark environments, while maintaining a low level of noise.
During daylight, and thanks to a high shutter speed, the DR970X’s ability to freeze the action is invaluable, capturing crucial details even in adjacent lanes at the edges of the screen.
4K UHD 8 MEGAPIXEL CMOS
+ SONY STARVIS 2
The DR900 utilises industry-leading video technology, rated best on the market by Auto Express magazine for two consecutive years.
The front camera features a 8.4 MP sensor and ultra-wide 146° viewing angle to take full advantage of the 4K UHD resolution – four times as many pixels as Full HD.
The rear camera includes SONY’s remarkable STARVIS technology, recording Full HD video at 139 degrees with outstanding low-light sensitivity.
The front camera features a 8.4 MP sensor and ultra-wide 146° viewing angle to take full advantage of the 4K UHD resolution – four times as many pixels as Full HD.
The rear camera includes SONY’s remarkable STARVIS technology, recording Full HD video at 139 degrees with outstanding low-light sensitivity.
BLACKVUE
CLOUD
BlackVue Cloud is a suite of innovative ‘connected’ features that take the BlackVue user experience to new levels, unlocking the true power of your dash cam and remotely connecting you with your vehicle.
Let your BlackVue watch over your car, informing you immediately of incidents such as impacts, via Push Notifications to your Apple or Android phone. Connect to your BlackVue dash cam anytime, from anywhere, and check on your car with Remote Live View.
Play recorded video clips remotely and back-up important ones to the Cloud or your phone. Monitor progress and access location data, GPS logs and Driving Reports courtesy of the realtime Live Tracking feature.
remote
live view
Monitor your vehicle in real time, from anywhere, at any time.
emergency
alarm
Get a notification whenever something happens to your car.
gps
tracking
Visualise your car’s location and speed on a moving Google map.
remote video
playback
Playback video clips stored in the Cloud or on your dash cam at any time on your smartphone.
two-way
voice calls
Talk directly with people in the car via the internal speaker and microphone in the dash cam.
ALWAYS-ON
VIDEO SECURITY
The new BlackVue DR970X-2CH LTE PLUS is more than just a dash cam, it is an advanced video surveillance system for your car.
It features built-in 4G LTE connectivity, meaning you are always connected, enabling unique features like Remote Live View, letting you monitor your vehicle from anywhere in real time – it’s like always having a pair of eyes on your car. Rest easy knowing that your BlackVue is always capturing and saving video evidence – front and rear, and the built-in SIM card slot means your dash cam is always connected to BlackVue’s industry-leading Cloud services.
Each DR970X-2CH LTE PLUS comes with a free SMARTY Smart SIM, ensuring you are up and running in minutes. Take full advantage of the DR970-2CH LTE PLUS’s unique LIVE cloud-based features with a generous 2GB monthly data allowance for an unbeatable £5.00 per month.
SMARTY
4G DATA PLAN
Each DR970X-2CH LTE PLUS comes with a free SMARTY Smart SIM, simply activate your data plan via the SMARTY app / website and you are up and running in minutes.
Take full advantage of the DR970X-2CH LTE PLUS’s unique LIVE cloud-based features with a generous 2GB monthly data allowance for an unbeatable £5.00 per month.
INTELLIGENT
PARKING MODE
Dash cams are designed to record your drive, but did you Dash cams are designed to record your drive, but did you know that the BlackVue DR970X-2CH LTE PLUS can also monitor your vehicle when you’re not around?
BlackVue’s unique Intelligent Parking Mode is ideal if you worry about hit-and-runs, theft or vandalism while your vehicle is parked and left unattended.
In-built power management circuitry will ensure that your camera will never deplete your vehicle’s battery when operating overnight, switching-off should the car’s battery level drop below a pre-set level. For extended recording times simply add a BlackVue B-130X battery
The DR970X-2CH LTE PLUS supports two Parking Mode options, Motion and Impact Detection, and Time Lapse.
Motion and Impact detection mode uses your cameras image sensor to detect movement, and the inbuilt accelerometer/G-sensor to detect bumps or impacts. To reduce the number of unwanted recordings triggered by motion and movement, the DR970X-2CH LTE PLUS can specify areas to ignore, eliminating recordings triggered by things like swaying trees, far-away moving objects, etc.
In Time Lapse mode, to reduce the size of the video files and save SD card space, the camera will continuously record at just 1FPS (one frame per second), rather than the standard 30/60 FPS. All event clips however are recorded at full resolution and 30FPS. A standard 64GB microSD card can store over 96hrs of time lapse video at the highest (Extreme) video quality level.
BLACKVUE
APP AND VIEWER
The BlackVue App for iOS and Android is free to download and use and allows you to conveniently control your dash cam from your smartphone.
Access your camera’s configuration settings, video files and use camera Live View for easy set-up and positioning of the DR970X-2CH LTE PLUS in your vehicle. The app also controls BlackVue Cloud and its unique set of connected features including Emergency Notifications, Live View, Video Back-Up and Real Time Tracking.
BlackVue App for iOS and Android
BlackVue Viewer for Windows PC and Apple Mac
BlackVue Viewer for Windows and Apple Mac is free to download and allows you to easily configure your camera’s settings and view video clips.
Access recordings on your camera’s microSD card, simultaneously viewing front and rear camera footage, moving maps and GPS data including time, date and speed. All video clips are listed by date, time and recording mode (Normal, Parking, Event, etc.), making it simple to quickly identify and archive important footage.
BlackVue Viewer also provides access to your camera’s settings, as well as the ability to update your dash cam’s firmware when necessary.
Viewer also allows you to connect to your DR970X-2CH LTE PLUS remotely, accessing Live View, Real Time Tracking etc., anytime and anywhere.
SMART
POWER PACKS
For Extended Parking Mode Operation
Power your BlackVue dash cam in Parking Mode for longer with a dedicated smart battery pack. Fast-charging, long-lasting and expandable. Never miss an incident, a BlackVue Power Magic battery adds valuable additional recording time to your set-up without troubling your vehicle’s battery, for ‘always-on’ functionality. Visualise your battery status via the FREE BlackVue Battery Manager App for iOS & Android.
Model: Power Magic B-124X
WHAT’S INCLUDED
SPECIFICATION
Model Name | DR970-2CH LTE PLUS |
Colour / Size / Weight | Front: Black / Length 137.6 mm x Height 43 mm x Width 60.2 mm / 166 g Rear: Black / Length 67.3 mm x Width 28 mm x 25 mm Height / 25 g |
Memory | microSD Card (64GB / 128GB / 256GB / 512GB) |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording. *For Parking mode recording, Hardwire cable is included or a Parking mode Battery Pack (B-112 or B130X). |
Camera | Front: 8.4-Megapixel Sony STARVIS 2 image Sensor
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 megapixels) Front: STARVIS™ 2 CMOS Sensor (Approx. 8.4 M Pixel) Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle | Front: Diagonal 146°, Horizontal 125°, Vertical 68° Rear: Diagonal 131°, Horizontal 107°, Vertical 55° |
Resolution / Frame Rate | <Front — Rear> 4K UHD (3840 x 2160) @30fps (Extreme) — Full HD (1920 x 1080) @30fps * Frame rate may vary during Wi-Fi streaming *Frame rate may vary during Wi-Fi streaming. |
Image Quality | Highest(Extreme) / Highest / High / Normal |
Video Compression Mode | MP4 |
Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
Bluetooth | Built-in (V2.1+EDR/4.2) |
GPS | Built-in (Dual Band: GPS, GLONASS) |
Microphone | Built-in |
Speaker (Voice Guidance) | Built-in |
LED Indicators | Front: Recording LED, GPS LED, LTE / Wi-Fi LED, Front Security LED Rear: Rear Security LED |
Sensor | 3-Axis Acceleration Sensor | |
Button | Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. | Proximity sensor: | Touching the proximity sensor turns on/off audio recording or triggers manual recording depending on the firmware settings.
Backup Battery | Built-in super capacitor | |
Input Power | DC 12V – 24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V) | |
Power Consumption |
Normal Mode (GPS On/Cloud On) : Avg. 590mA/12V
Parking Mode (GPS Off/Cloud On) : Avg. 430mA/12V
Parking Mode (GPS Off/Cloud Off) : Avg. 370mA/12V
* Actual power consumption may vary depending on use conditions and environment.
* Model DR970X-2CH LTE Plus should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).
|
|
Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) | |
Storage Temperature | -20 °C − 70 °C (-4 °F − 158 °F) | |
High Temperature Cut-Off | Approx. 80 °C (176 °F) | |
Certifications | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC |
|
Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher |
|
Application | BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) | |
Others | Adaptive Format Free File Management System | |
* STARVIS is a trademark of Sony Corporation. |
